The

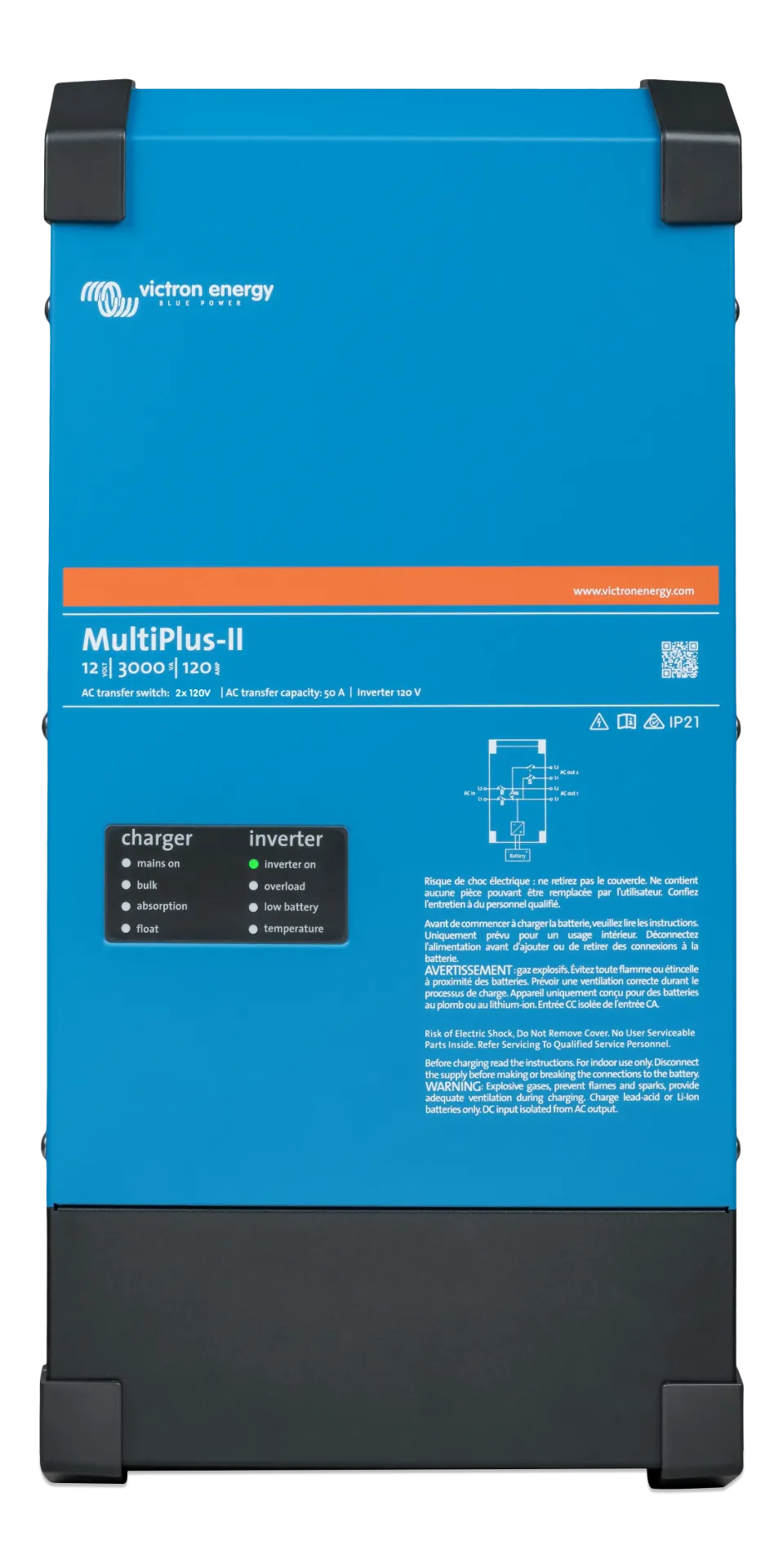

MultiPlus-II 2x 120V is the perfect one-box mobile solution for standard
North American 50A 120/240VAC split-phase applications. Whether it is
supplied from shore power or a generator, the MultiPlus-II 2x120V can accept
and passthrough both lines of a 120/240V supply, with the capability to
utilize the full 50A for charging and AC loads. When connecting to a single
phase 120V supply, the L1 input of the MultiPlus-II 2x120V will accept
incoming power for charging and passthrough, while combining the L1 and L2
outputs for single-phase 120V on each line.
The MultiPlus switches to inverter operation when no AC source is
available. The inverter output is also 120V single phase. In inverter mode,
the MultiPlus-II 2x120V internally connects both lines L1 and L2 together to
provide 120VAC to loads on either output. Therefore, in all connection
circumstances, both sides of a distribution panel will be supplied with 120V.
However, 240VAC is only available when the MultiPlus is supplied by a split
phase 120/240VAC source. This prevents heavy loads such as water heaters or
240V air conditioners from discharging the battery.

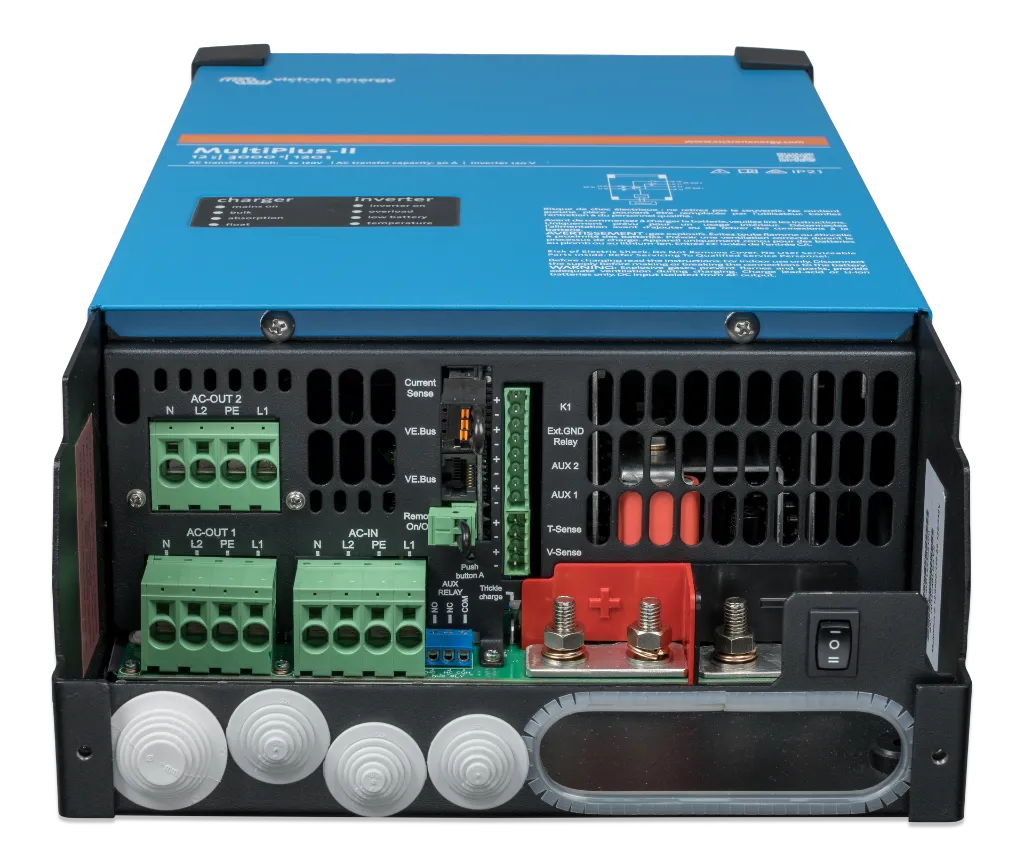

The MultiPlus-II 2x 120V has all of the expected features of our versatile
inverter/charger range, including PowerControl, PowerAssist, Input Current
Limit, two AC outputs, as well as parallel and 3ph configuration for larger
capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of
other battery technologies.
